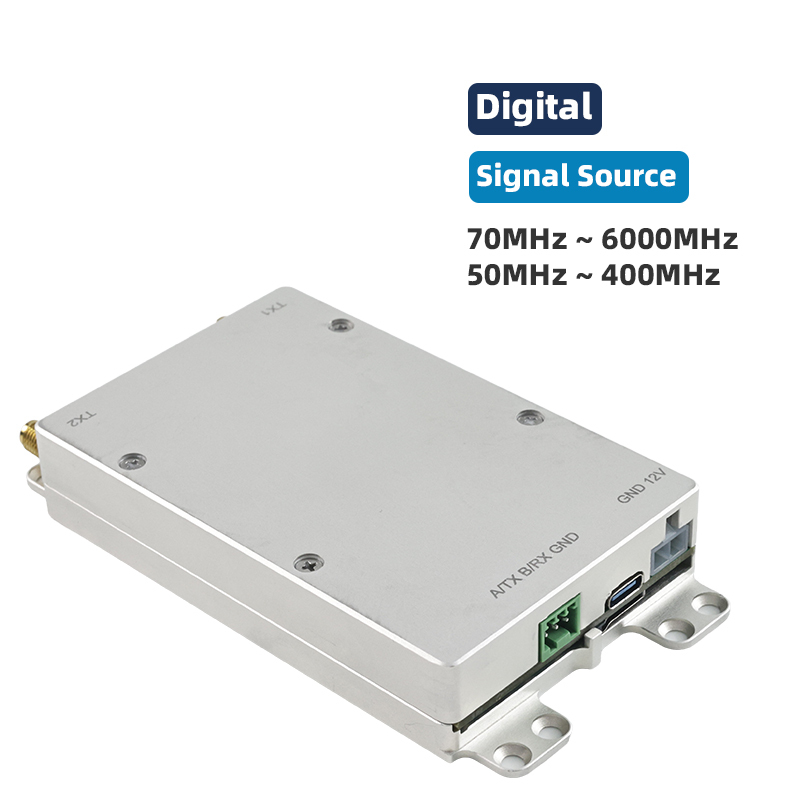

Covering 70 MHz to 6000 MHz, this wideband digital signal source supports most mainstream wireless bands. One single module replaces multiple devices, simplifying system design and reducing overall deployment costs.
With an intelligent Band Protection function, users can define silent zones to avoid restricted or critical frequencies. This ensures safe, compliant operation without affecting essential communication channels.
Featuring millisecond-level scanning and switching, the system reacts instantly to changing signal conditions, maintaining optimal performance even in complex and fast-moving RF environments.
Output power and attenuation are fully software-controlled, allowing precise adjustment of signal strength and coverage. Easily tailor performance to match different scenarios, missions, or system requirements.

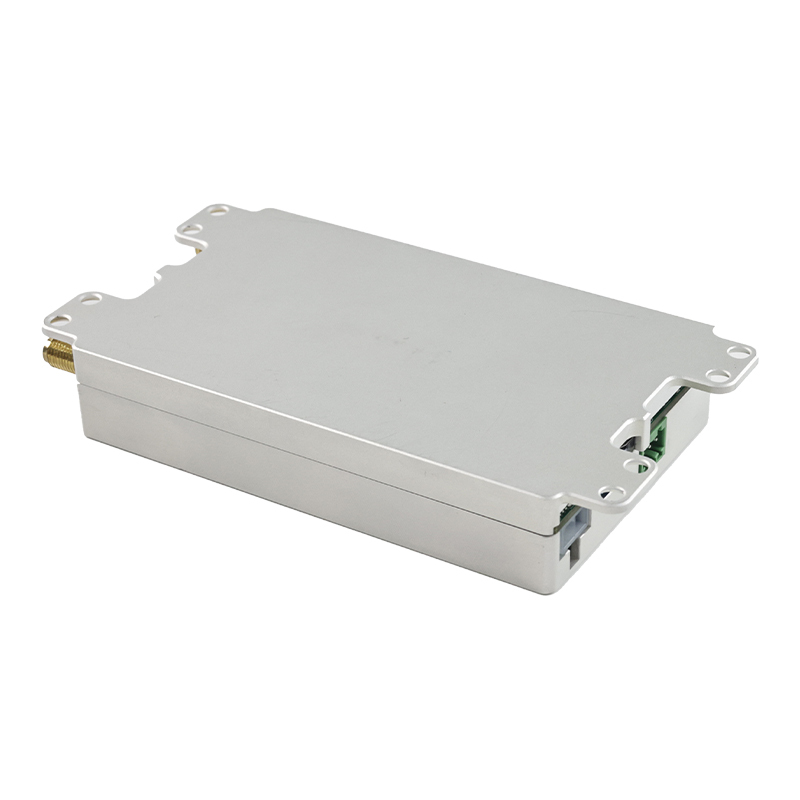

A compact, fanless design with wide temperature tolerance ensures stable operation in demanding environments. Standard interfaces enable fast integration into existing platforms, saving time from development to deployment.
| Item | Specification |
| Frequency Range | 70MHz~6000MHz |
| Signal Bandwidth | 50MHz~400MHz |
| Scan Speed(Example) | 2.34ms to scan 2000MHz bandwidth |
| Output Power Range | -10dBm~+3dBm(Customizable） |

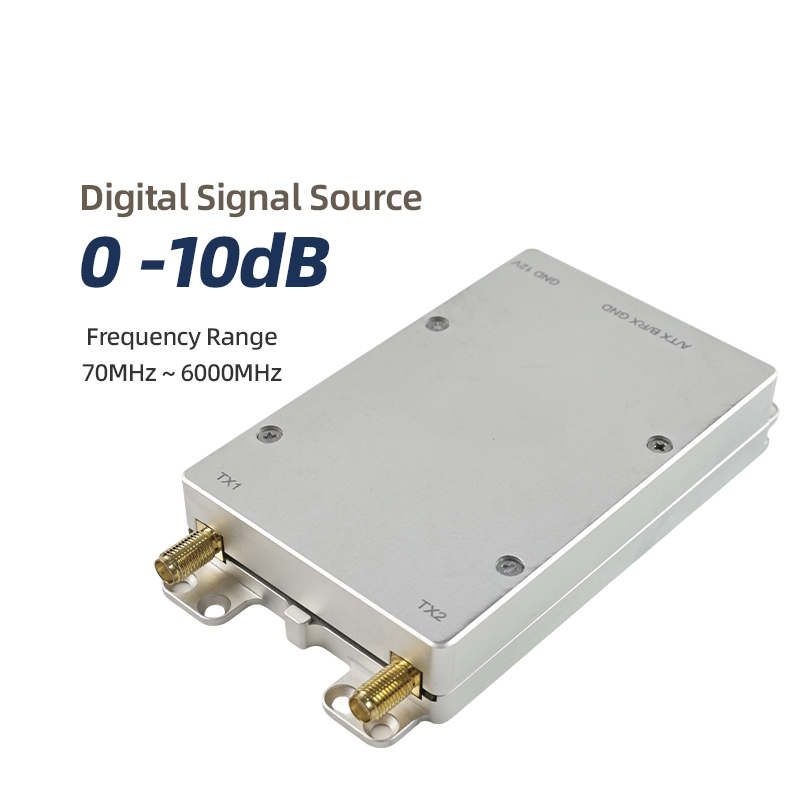

| Digital Attenuation Range | 0~10dB |
| Power Supply Voltage | 12.0V~28.0V（Nominal12V） |

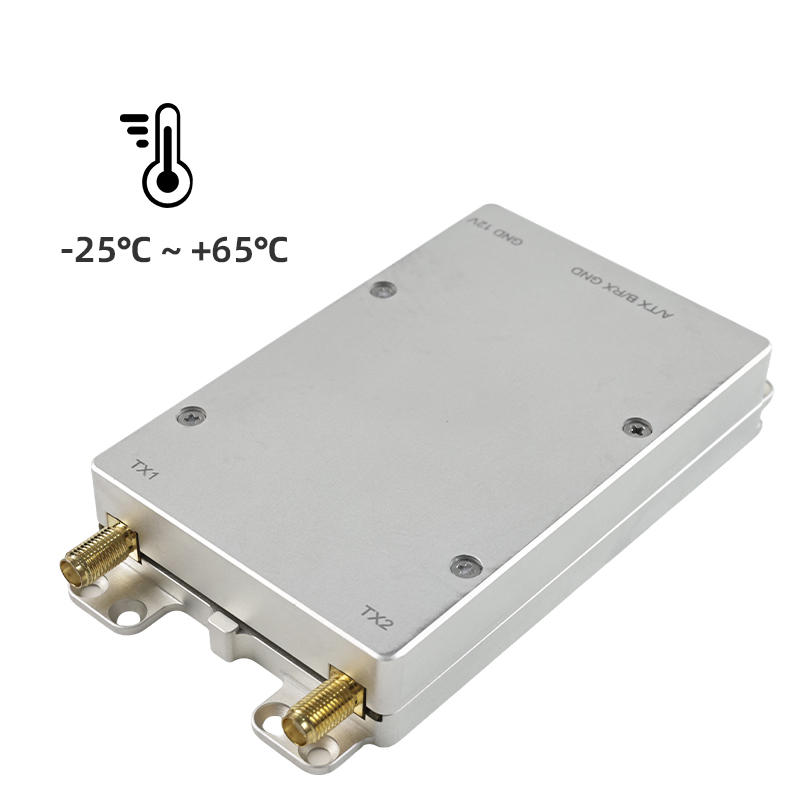

| OperatingTemperature | -25°℃~+65°℃ |
| Operating Current | ≤0.5A（@12.0V） |

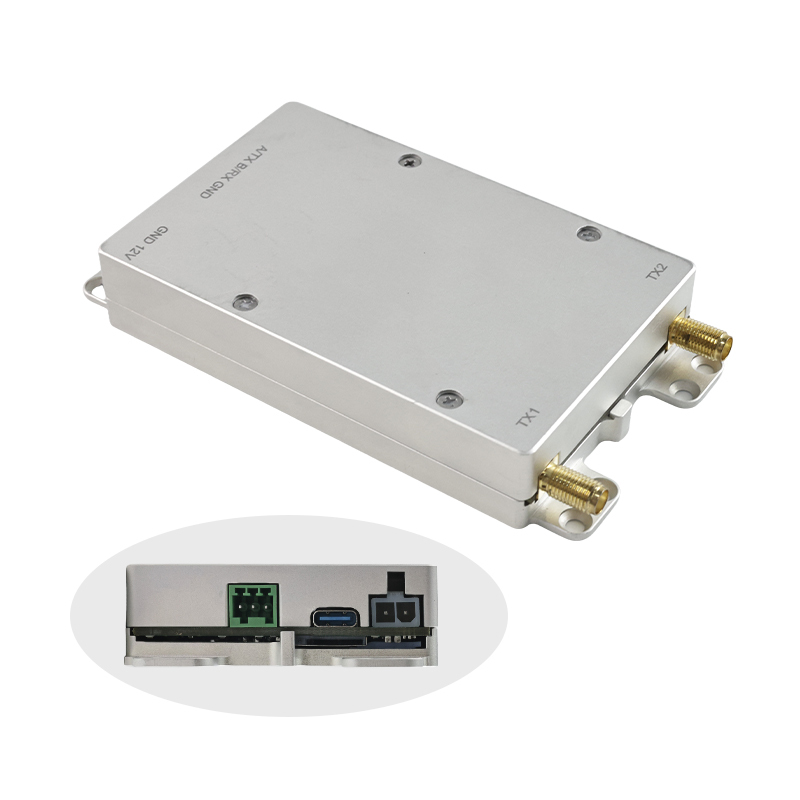

| RF Output Interface | TX1,TX2(SMA-K) |

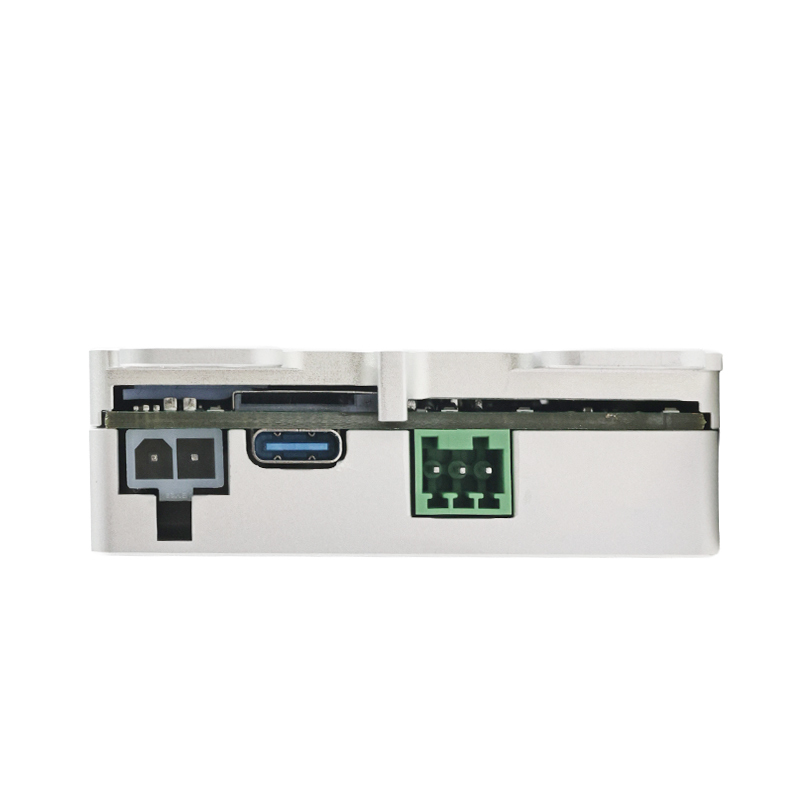

| Control & Power Interface | DB2ERC-2.54-3P（RS485）,Type-C,DC Power |

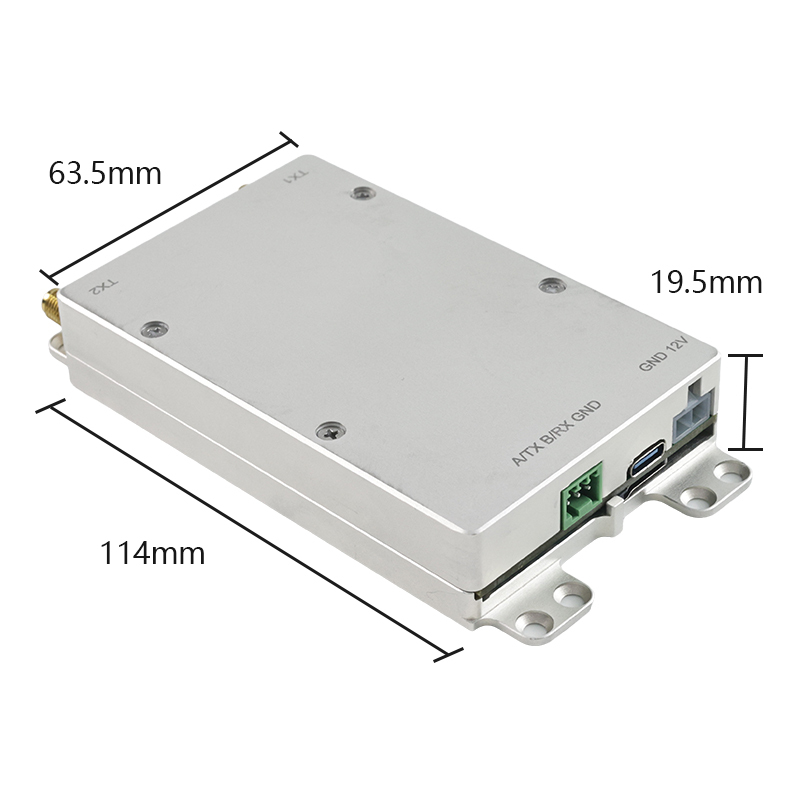

| Dimensions | 114mm×63.5mm×19.5mm |
