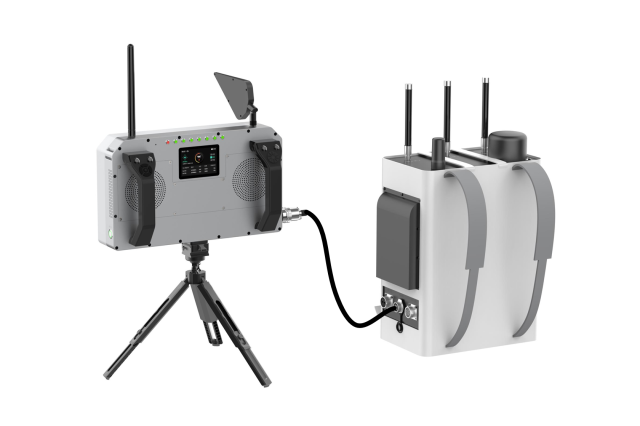

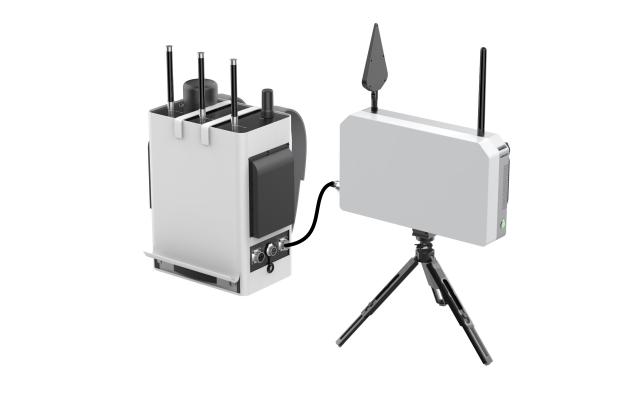

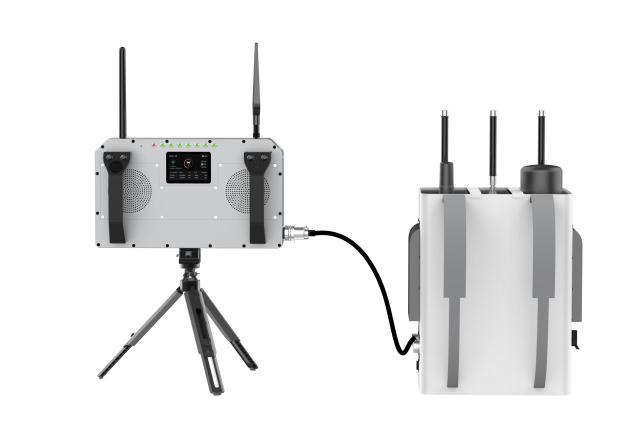

The backpack-style UAV countermeasure device integrates detection, jamming, and spoofing capabilities into a single unit, designed with both wearable and handheld portability. The device supports 360° omnidirectional detection and, with the aid of high-gain directional antennas, can precisely locate and direction-find certain DJI drones while effectively disrupting their links. The spoofing module not only repels drones but also allows the operator to flexibly choose the spoofing direction via directional keys, enabling more targeted and secure handling.
The backpack-style UAV countermeasure device integrates detection, jamming, and spoofing capabilities into a single unit, designed with both wearable and handheld portability. The device supports 360° omnidirectional detection and, with the aid of high-gain directional antennas, can precisely locate and direction-find certain DJI drones while effectively disrupting their links. The spoofing module not only repels drones but also allows the operator to flexibly choose the spoofing direction via directional keys, enabling more targeted and secure handling.
Main Functions
| Item | Specification |
| Detection Frequency | 300Mhz-6GHz |
| Detection Range | >2km(line-of-sight,low EMI enviroment) |
| Coverage | 360° |
| Direction Finding Accuracy | ≤20° |
| Alert Mode | Sound and light |
| Response Time | 3s |
| False Alarm Rate | ≤1 time/12h |
2)Jamming Perfomance
| Item | Specification |
| Fixed Jamming Bands | 845–935MHz, 1160–1300MHz, 1550–1640MHz, 2.4–2.5GHz, 5.15–5.25GHz, 5.710–5.920GHz |
| Jamming Distance | ≥1 km (line-of-sight, 0.1W signal source, for DJI Mavic 3 with jamming ratio 2:1) |
| Response Time | ≤5s |
3)Navigation Spoofing Performance
| Item | Specification |
| Working Frequency | GPS L1 / GLONASS R1 / BDS B1 / GALILEO E1 |
| Effective Distance | ≥2 km |
| Response Time | ≤3s |
| Coverage | 360° |
| Spoofing Direction | Selectable |
