Functional Role and Intended Engineering Users
This 300–1500 MHz 100W GaN RF power amplifier module serves as a high-power, wideband signal amplification stage for RF engineers, system integrators, wireless equipment developers, and research laboratories. It is intended to be used as the downstream amplifier after signal generators, frequency synthesizers, or modulation units in custom RF transmission and test systems. Typical users include communication system developers, spectrum analysis labs, wireless infrastructure designers, and academic research institutions that require a robust, wideband amplification module for prototype construction, RF link testing, or signal propagation experiments. The module is a hardware-only component and must be integrated within a broader RF system including power supply, control electronics, antenna or waveguide interfaces, and appropriate thermal management.
RF Architecture and Core Performance Parameters
Leveraging GaN (Gallium Nitride) semiconductor technology, this module achieves high output power, wide bandwidth, and enhanced thermal stability over traditional silicon-based amplifiers. It delivers continuous RF output power up to 100W across a broad frequency span from 300 MHz to 1500 MHz. The design emphasizes flat gain response across the band, stable impedance matching, and controlled noise / distortion characteristics to ensure clean signal amplification. Internal thermal management, voltage regulation, and RF shielding ensure the module maintains reliable performance even under continuous-duty operation common in long test cycles or high-power transmission scenarios. These features make the module well suited for applications such as wideband signal testing, antenna drive, and RF link verification in complex wireless systems.
System-Level Value and Engineering Utility
In projects requiring wideband RF transmission — such as multi-band communication system development, broadband spectrum testing, or high-power link validation — this module simplifies system architecture by consolidating amplification into a single wideband unit. Instead of using multiple narrow-band amplifiers or complex cascaded chains, engineers can rely on this module to cover a broad frequency range with a uniform amplification stage. This reduces system complexity, lowers insertion losses, and enhances overall efficiency. For laboratories and RF infrastructure developers, it supports rapid prototyping, antenna pattern testing, frequency sweep experiments, and long-duration RF stress tests with consistent output and predictable behavior.
Product Advantages
High-Efficiency GaN-Based Amplification for Stable Output
GaN semiconductor devices are well-known for high electron mobility and superior high-frequency performance compared to silicon-based counterparts, enabling high output power and wide bandwidth with improved thermal performance.This amplifier delivers 100W continuously while maintaining good thermal stability and electrical efficiency, making it reliable for extended use in lab benches, rack-mounted systems, or custom RF platforms requiring heavy-duty performance.
Broad 300–1500 MHz Coverage Simplifies Multi-Band Design
The wide 300–1500 MHz operating band covers many common mid-band frequencies used in wireless communication research, broadband transmission testing, and antenna system validation. The wideband design eliminates the need for multiple narrow-band modules or frequent hardware changes, allowing system designers to build flexible, multi-frequency-capable RF platforms with a single amplifier. This simplifies RF chain design and accelerates project timelines for testing, development, or integration tasks.
Modular Mechanical/Electrical Interface for Flexible Integration
The module is designed for standard RF system integration, with matching RF connectors (50 Ω input/output), regulated DC power input, and a compact mechanical form factor appropriate for rack mounting, enclosure installation, or custom platform embedding. This modular design allows easy integration into diverse systems such as test benches, prototype transmitters, communication relays, or research rigs. For engineers and integrators, this reduces design overhead, simplifies system layout, and supports scalable deployment across different use cases.
Use Scenarios
Wireless Communication Prototyping and Link Testing
Communication system developers can use this amplifier to build prototype transmitters or repeaters for mid-band wireless links, enabling evaluation of link performance, signal integrity, coverage, and antenna radiation patterns under controlled high-power conditions. The broad 300–1500 MHz band allows testing across multiple frequency regimes without replacing hardware.
Spectrum Research and RF Laboratory Experiments
RF laboratories and spectrum research centers can employ this module as a stable, high-power RF source for wideband signal generation, frequency sweep experiments, harmonic behavior analysis, antenna calibration, and long-term RF transmission testing. Its predictable output makes it valuable for controlled experiments and data collection under reproducible conditions.
Infrastructure RF System Integration and Testing
For system integrators building custom RF infrastructure — such as long-range communication links, test rigs, or signal transmission platforms — this amplifier serves as the high-power backbone enabling antenna driving, link validation, or broadcast testing. Its wideband capability supports flexible deployment across diverse frequency requirements without hardware replacement, streamlining system design and maintenance.

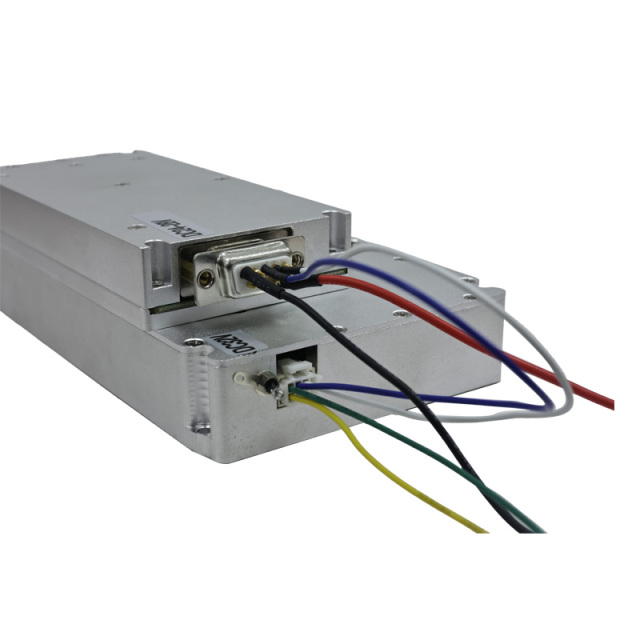

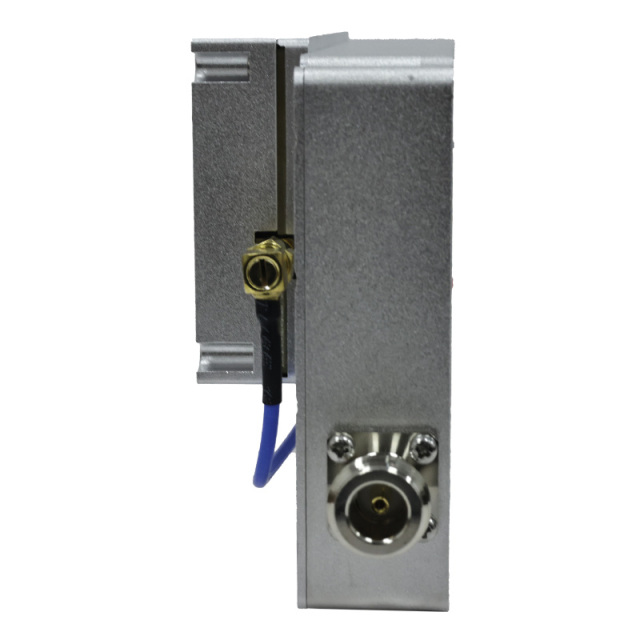

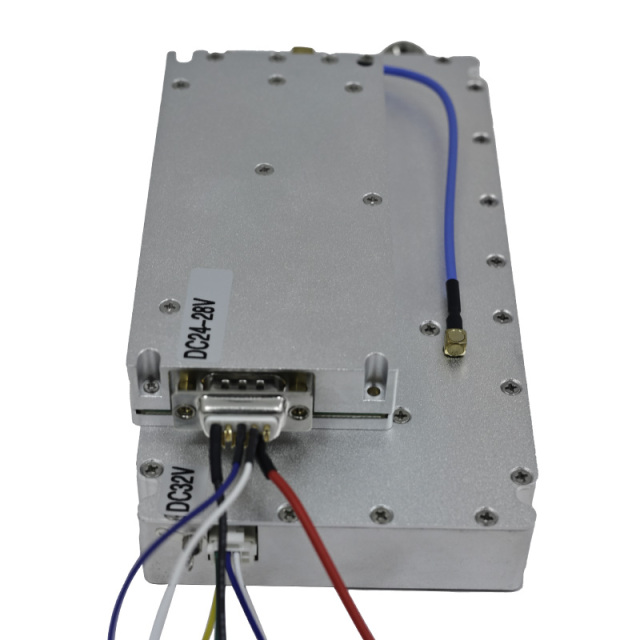

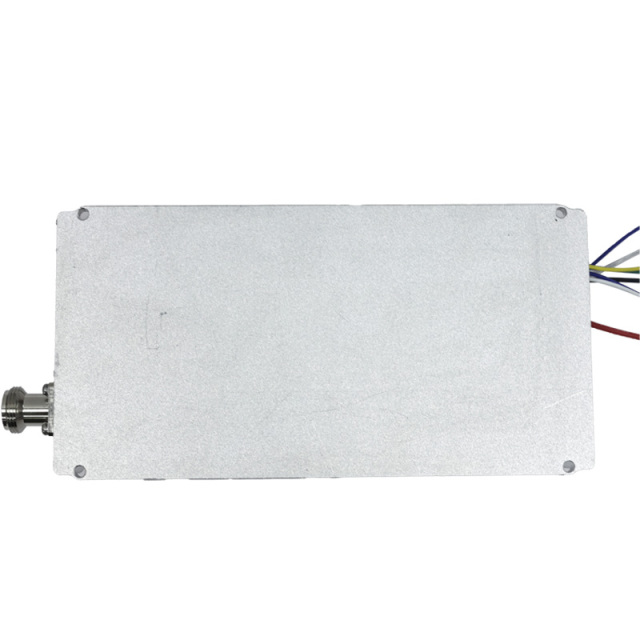

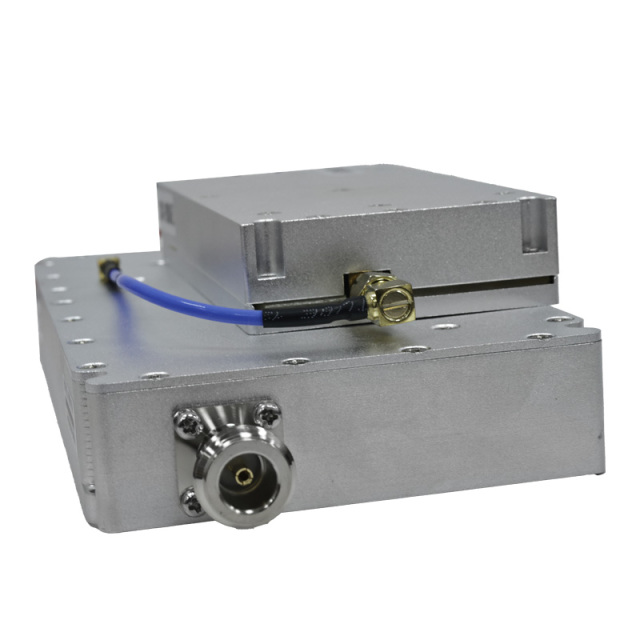

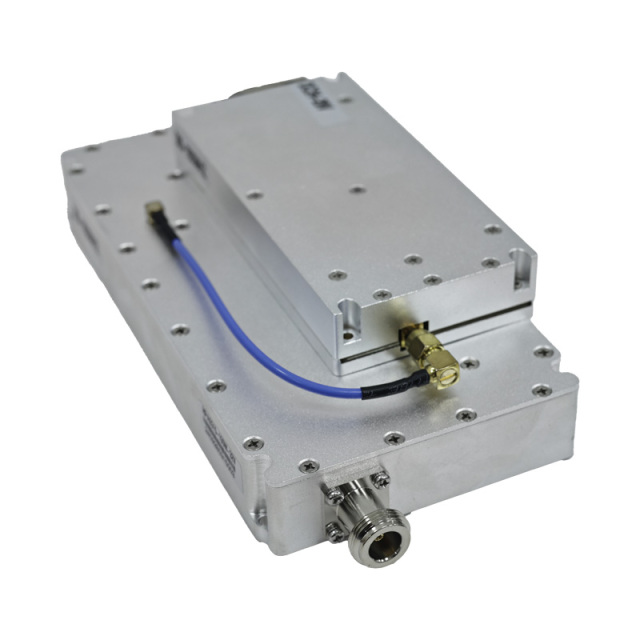

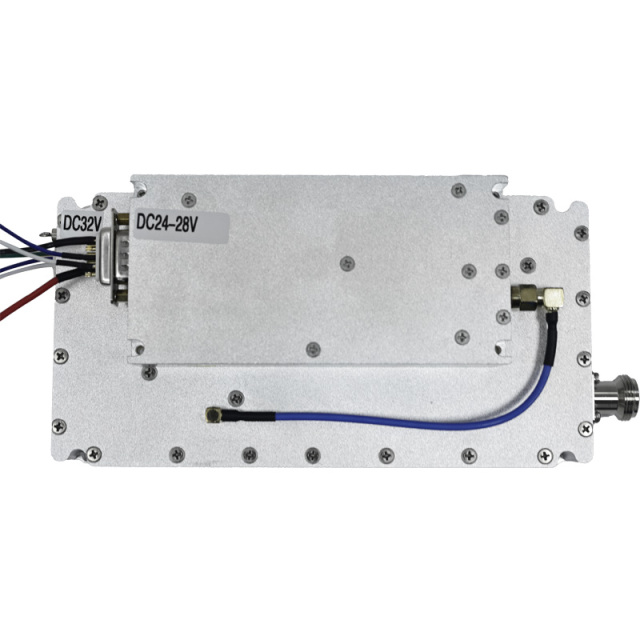

300-1500MHz 100W GaN Anti-Drone Module
Product Features
✅ Ultra Wide Frequency Coverage: supports 300MHz-1500MHz frequency band, can interfere with multiple drone communication protocols.
✅ High power output: Maximum output power is 100W, effectively improving the jamming range and effect.
✅ High-efficiency GaN technology: Higher efficiency, lower power consumption and better heat dissipation performance than traditional LDMOS solutions.
✅ Low VSW protection: with antenna port protection (optional circulator or electronic bridge) to prevent damage to the amplifier.
✅ Flexible Integration: Compact size, can be quickly integrated into all kinds of UAV anti systems (portable, vehicle-mounted, fixed, etc.).
✅ Weather Resistant: It can work stably in -40℃ to +65℃ environment and adapt to various harsh conditions.
Application Scenarios
🚔 Law enforcement agencies: police, border security, prison management, preventing illegal intrusion of drones.
🔰 Military defense: battlefield drone suppression, tactical shielding interference.
🏭 Critical infrastructure protection: airports, power stations, government agencies, etc. against drone threats.
If you need detailed specifications or customized solutions, please contact us!
About Us
We specialize in the design and manufacture of GaN-based RF power amplifier modules covering multiple frequency bands and power output levels. Our engineering focus is on providing stable electrical performance, efficient thermal management, and modular mechanical design to support diverse RF system integration scenarios — from research labs and communication development to infrastructure testing and prototype build-outs. Our customers include wireless system developers, RF test laboratories, communication equipment manufacturers, and academic/research institutions worldwide seeking reliable, wideband RF amplification modules.
Provide your required frequency band, output power, and integration specifications to request a tailored configuration and technical support today!
FAQ
What type of power supply does this amplifier require?
It requires a regulated DC power supply matching the voltage and current specifications stated in the datasheet.
Is continuous operation supported?
Yes — with proper thermal management and power regulation, the module supports continuous RF output at rated power.
Can the frequency band be customized beyond 300–1500 MHz?
Depending on project volume and technical feasibility, frequency customization may be possible; please contact technical support for evaluation.
Does the module include modulation, control, or signal generation capabilities?
No — the module is provided as a passive RF power amplifier; signal generation and control must be handled by external equipment.
What is the typical lead time for order and delivery?
Lead time depends on order quantity and configuration requirements; typical delivery time ranges from a few weeks after specification confirmation.
