Target Role and System Function Positioning
This 10W GaN anti drone power amplifier is designed as a core RF transmission module for integrated anti drone system platforms that require wideband signal coverage and high linear output. It is typically deployed within anti drone technology solutions including detection-to-response chains where stable RF transmission is required after signal generation. Target users include RF system integrators, counter-UAV solution providers, defense electronics contractors, and test platform developers. The module supports multi-band signal transmission from 300MHz to 24GHz, enabling coverage across common UAV control and data link frequencies. It is not a standalone weapon unit, but a functional RF power stage embedded inside larger anti uav system architectures to support controlled signal output, shielding, or controlled interference deployment under regulated project environments.
RF Architecture and Core Performance Parameters
This module adopts Gallium Nitride semiconductor architecture, offering higher power density, thermal stability, and electrical efficiency than traditional LDMOS solutions used in older anti drone jammer system designs. Output power reaches 10W across a wide continuous frequency spectrum of 300MHz to 24GHz, supporting multi-band adaptability for modern drone detection system response chains. The amplifier features low harmonic distortion, flat gain characteristics, and controlled noise figure, ensuring clean spectral output that does not introduce unnecessary interference across adjacent bands. Integrated temperature protection, voltage regulation, and impedance stability ensure long-term reliability in complex electronic environments where drone detection radar system and RF sensing equipment operate in parallel.
Engineering Value and Industry Deployment Role
Within professional anti drone systems, RF amplifiers determine signal reach, response speed, and output stability. This 10W GaN amplifier is widely applied in laboratory RF validation platforms, field-deployable drone detector response units, mobile vehicle-mounted systems, and stationary perimeter security installations. It serves as the controlled output stage after digital signal processing and frequency synthesis, enabling system developers to fine-tune effective RF output without redesigning full transmitter chains. Its wideband nature significantly reduces the need for multiple narrowband amplifiers across segmented anti drone weapons architectures, simplifying system layout while improving maintenance efficiency for engineering teams.
Product Advantages
Compact Thermal Structure for Continuous RF Load
The amplifier integrates a compact aluminum thermal substrate and optimized GaN heat dissipation path, allowing continuous 10W output under sustained RF workloads common in anti drone jammer operating environments. Unlike conventional silicon solutions that suffer from rapid thermal drift, this structure keeps output power stable even when the anti drone system runs extended signal cycles. The reduced thermal resistance also extends semiconductor lifespan, lowering long-term replacement frequency for engineering teams operating mobile or unattended sites.
Wideband Integration Reducing System Layer Complexity
Covering 300MHz to 24GHz in a single amplifier unit allows system architects of anti uav system platforms to significantly reduce band-switching circuits, relay arrays, and multi-amplifier cascades. This simplifies overall RF architecture, shortens signal paths, and improves signal purity. For integrators building hybrid drone detection system and response platforms, the wideband design directly improves deployment efficiency, reduces power distribution complexity, and shortens commissioning timelines across multi-frequency projects.
Output Stability Supporting Precision RF Control
In counter-UAV solutions, RF output stability directly affects system precision. This amplifier maintains flat gain and consistent power distribution across the band, ensuring predictable behavior for anti drone technology developers performing calibrated RF output mapping. For systems requiring coordination between drone detector app signal analysis layers and hardware transmission layers, this predictability ensures digital control commands translate into stable physical RF output without unpredictable spikes or drops that could disrupt system coordination.
Use Scenarios
Mobile Security System Integrator Deployment
For system integrators deploying vehicle-mounted anti drone system platforms, this amplifier acts as the RF transmission core behind the control electronics. In convoy protection, temporary event security, and infrastructure patrol scenarios, integrators combine drone detector, directional antennas, and this GaN amplifier to form compact mobile response units. The wideband design allows the same hardware set to adapt across multiple UAV frequency profiles without hardware replacement, increasing flexibility for integrators who operate across different regulatory regions and threat environments.
Laboratory RF Validation and Algorithm Development
In RF laboratories developing drone detection radar system algorithms or testing signal response behavior of anti drone technology, engineers use this amplifier as a controlled RF output source. It supports signal validation, spectral behavior testing, and response chain calibration without requiring full field deployment. For developers working on spectrum mapping for anti uav system platforms, this module enables safe, repeatable RF emission under controlled shielded environments, ensuring algorithmic validation aligns with real hardware behavior.
Fixed-Site Perimeter Protection Engineering
For fixed installations protecting facilities such as logistics hubs, power stations, or secured campuses, this amplifier integrates into stationary anti drone jammer system platforms working alongside drone detection system sensors. Engineering contractors embed it within rack-mounted RF chains to ensure stable coverage across common UAV bands. Its long-duty-cycle reliability supports unattended operation, allowing security operators to maintain consistent RF readiness without frequent maintenance interruptions.

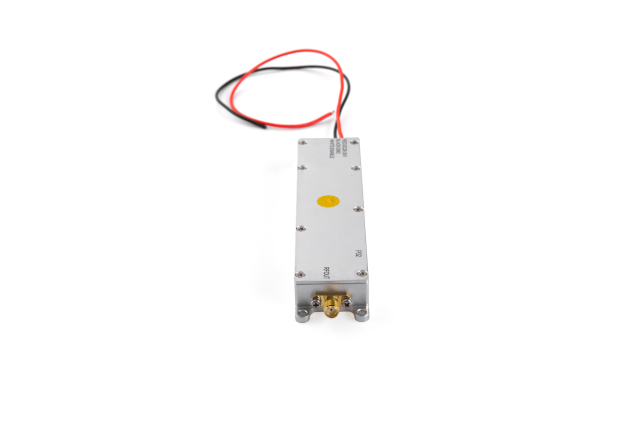

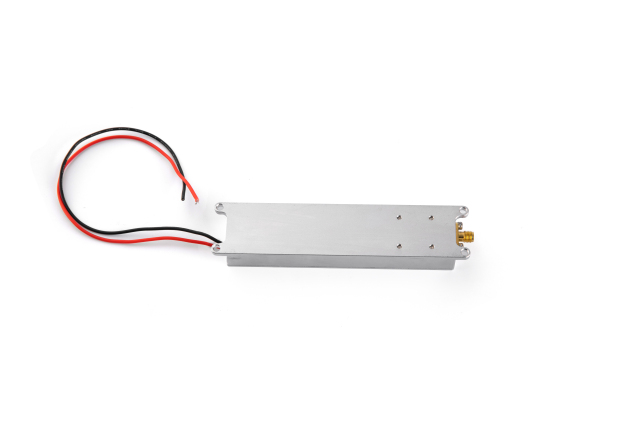

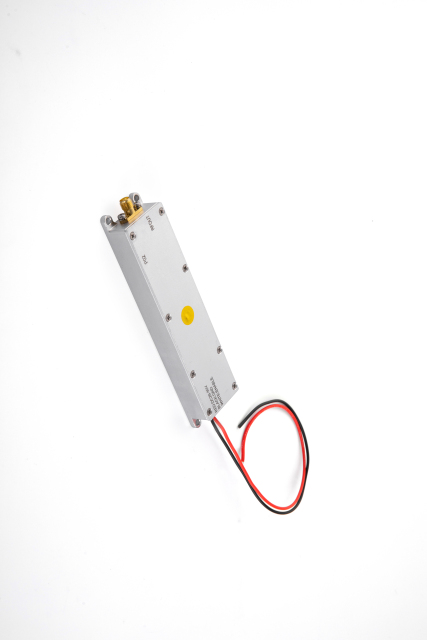

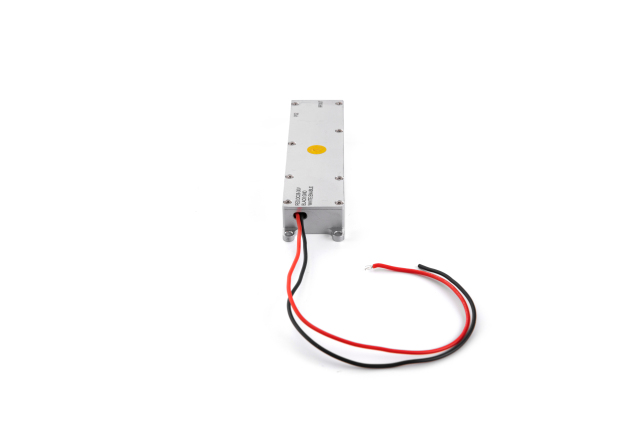

10W 300MHz-2.4GHz GaN Anti-drone Module Power Amplifier
About Us
We focus on RF module development for UAV countermeasure, detection-support electronics, and wideband signal transmission systems. Our engineering team specializes in GaN-based amplifier design, thermal control optimization, and frequency-stable RF architecture for professional system integration clients worldwide. We serve solution providers in security electronics, perimeter protection, spectrum monitoring, and RF laboratory instrumentation. Our products are positioned at the module level, supporting OEM system integrators, defense electronics contractors, and industrial RF developers with stable, scalable building blocks rather than consumer end products.
For technical datasheets, integration guidance, and project evaluation, submit your system parameters for engineering matching today!
FAQ
How is this amplifier integrated into an anti drone system?
It is installed as the RF power stage after the signal source and before the antenna within professional system architectures, not used as a standalone device.
What technical support and warranty are provided?
We offer remote RF integration guidance and a standard hardware warranty based on project delivery agreements.
Is this compatible with existing drone detection systems?
Yes, it supports common RF control and detection architectures used across drone detection system platforms.
What is the typical production and supply lead time?
Standard production ranges from 2 to 4 weeks depending on order volume and customization requirements.
How is data security and signal control handled?
The module itself does not store data; signal behavior is governed entirely by the host system controller.
